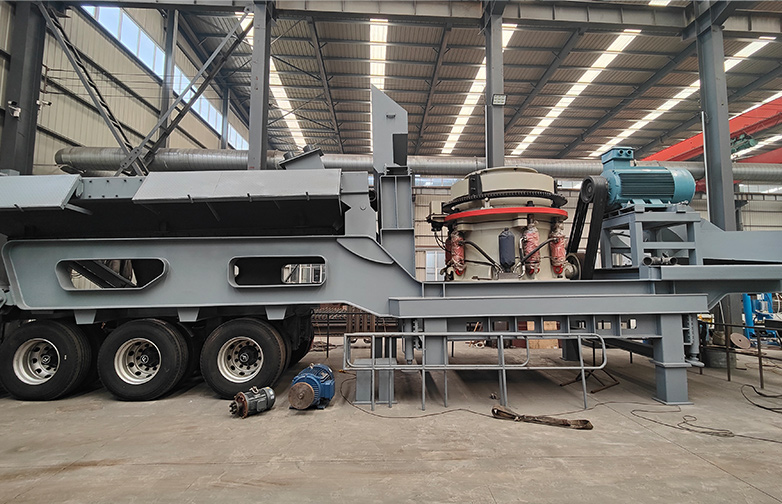

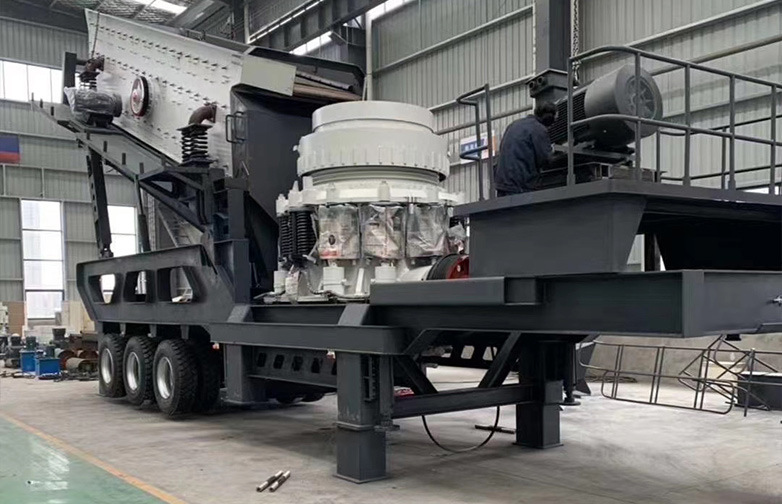

Mobile Cone crusher plant

Materials are fed evenly into the cone crusher by the vibrating feeder. After being crushed initially, they undergo screening; only qualified materials proceed to the next processing stage.The closed-circuit system enables material circulation and repeated crushing, with finished products discharged via belt conveyors to ensure continuous operation.The entire crushing process is smooth and efficient, with materials flowing rapidly between units, delivering high productivity and economic benefits for users.

Capacity: 50-250t/h

Max feed size:150-313mm

Power: 101.5-261kw

Send Message

Product Introduction

Working Principle

Materials are fed evenly into the cone crusher by the vibrating feeder. After being crushed initially, they undergo screening; only qualified materials proceed to the next processing stage.The closed-circuit system enables material circulation and repeated crushing, with finished products discharged via belt conveyors to ensure continuous operation.The entire crushing process is smooth and efficient, with materials flowing rapidly between units, delivering high productivity and economic benefits for users.

Parameters

Mobile Cone Crusher Plant Technical Parameters
Standard Model	Corollary Equipment	Corollary Equipment			Overall Dimension (mm)
Standard Model	Corollary Equipment	Model	Feeding Size (mm)	Capacity (t/h)	Overall Dimension (mm)
S-CS75	3YZK1848	CS75	≤160	59-163	12600×2800×4400
S-CS110	3YZK1860	CS110	≤178	100-200	13800×3000×4400
S-CS160	3YZK2160	CS160	≤188	132-253	13800×3000×4400
S-CS220	3YZK2160	CS220	≤230	215-330	14500×3000×4500
S-H420	3YZK1848	SH420	≤240	85-170	12600×2900×4400
S-H430	3YZK1860	SH430	≤360	120-345	13800×3000×4500
S-H440	3YZK2260	SH450	≤450	255-605	14800×3200×4600
S-HP200	3YZK2160	SHP200	≤185	145-250	14200×3000×4500
S-HP300	3YZK2260	SHP300	≤230	180-300	16500×3200×4600
S-HP400	3YZK2260	SHP400	≤230	220-380	16500×3200×4600

Advantages

1. It enables finer stone processing and effectively improves the gradation and quality of finished products.

2. Diversified configurations are available to meet various crushing requirements of different customers.

3. Energy-saving and vehicle-mounted design helps reduce costs in infrastructure, labor, operation and other aspects.

4. Featuring flexible mobility, the plant can be directly put into on-site operation for stable crushing, even under harsh working conditions.

Application Fields

The core crushing equipment of cone mobile crushing station is cone crusher. Sand and gravel yard, construction waste, coal mining, mining, concrete mixing station and other fields, processing construction waste, etc.
