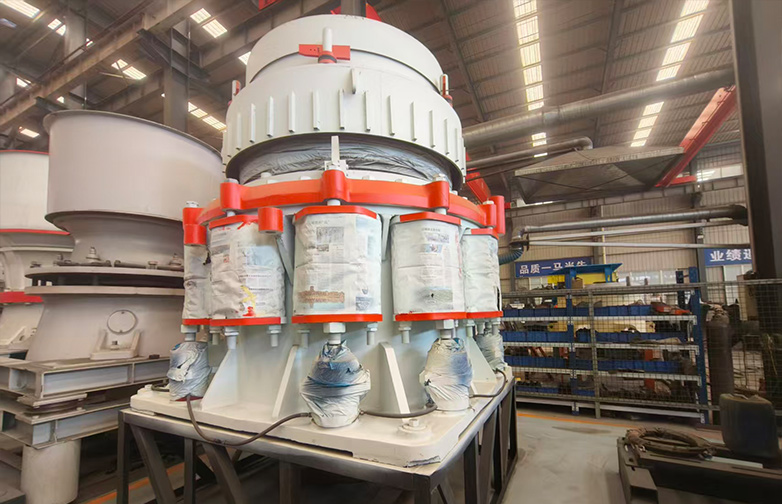

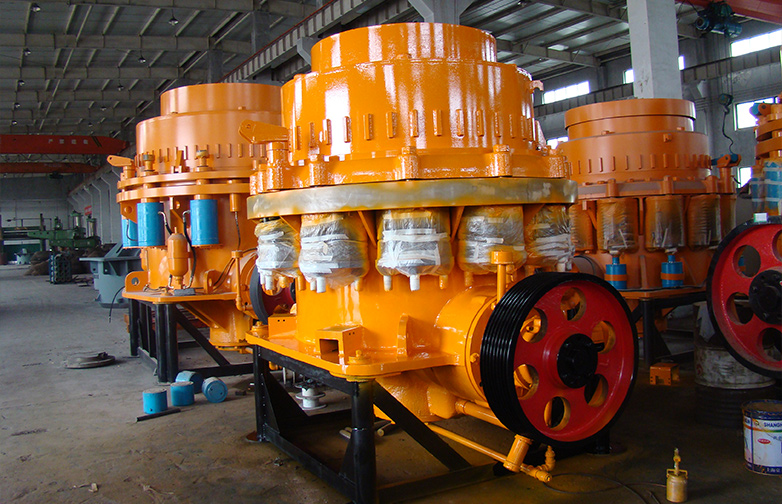

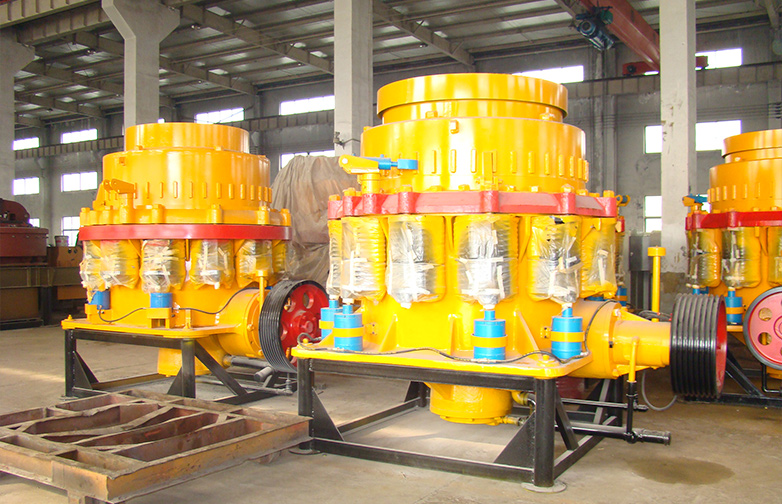

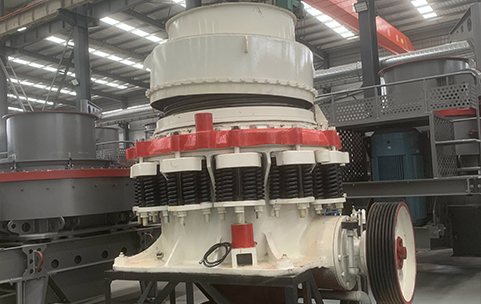

Compound Cone Crusher

The compound cone crusher is an advanced, high-performance crushing machine that integrates the advantages of both spring cone crushers and hydraulic cone crushers. It is widely recognized as a semi-hydraulic cone crusher, designed for medium and fine crushing of hard and abrasive materials.

Technical Parameters

Feeding size: 3–64 mm

Motor Power: 55–315 kW+

Processing Capacity: 45–1000 t/h

Send Message

Product Introduction

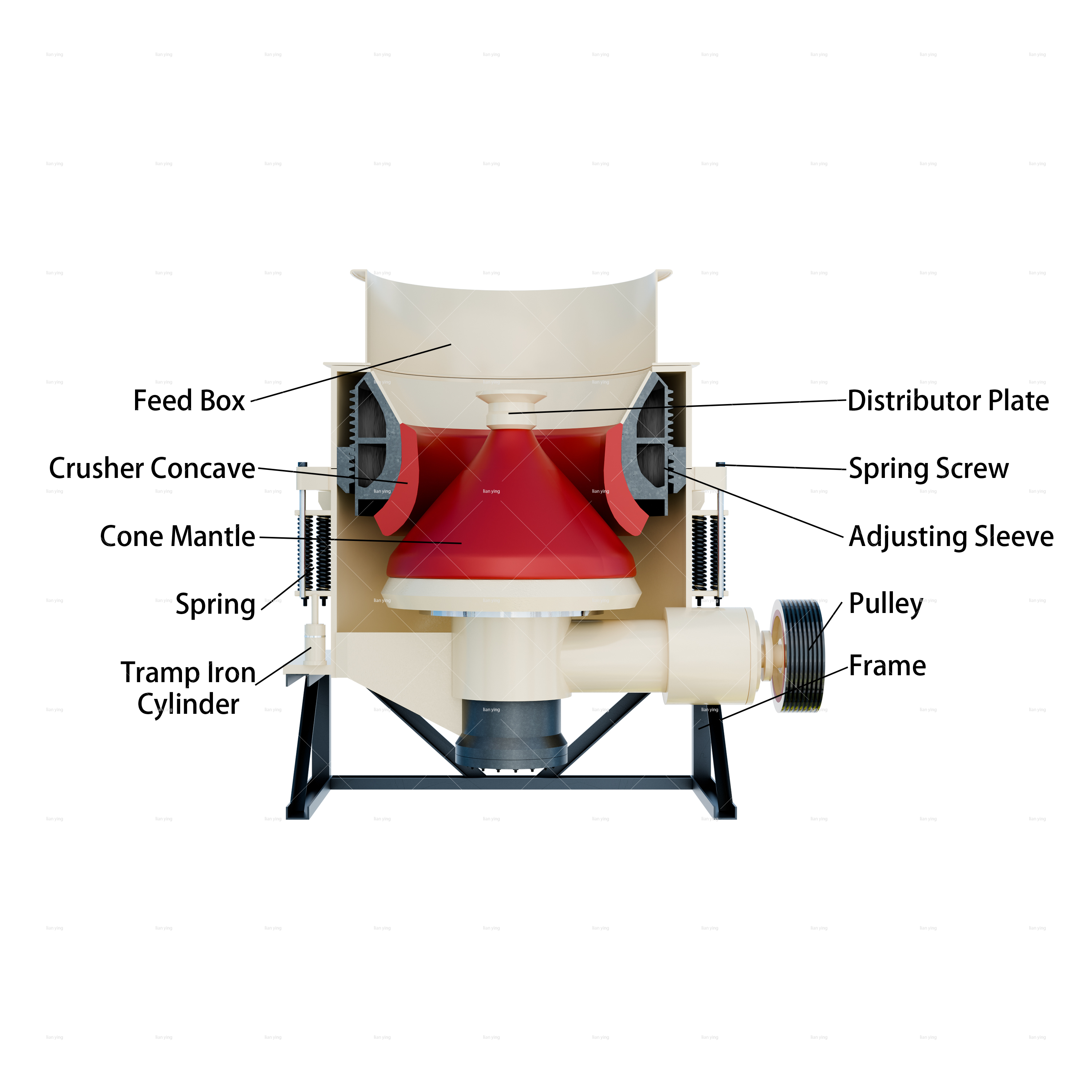

Working Principle

Driven by a motor, the eccentric sleeve rotates via a V-belt and bevel gears. This motion forces the mantle (moving cone) to gyrate around the bowl liner (fixed cone). As the mantle approaches the bowl liner, materials in the crushing chamber are subjected to intense compression, impact, and bending forces. When the mantle retreats, crushed materials meeting the discharge size exit the chamber, while larger particles remain for further crushing. This continuous gyration ensures efficient size reduction.

Key Features

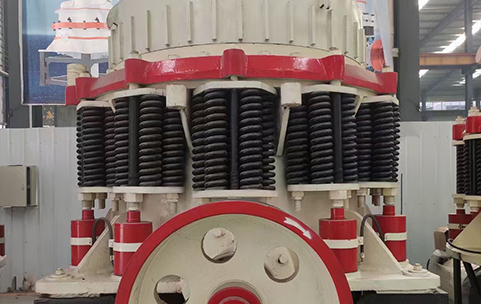

Hybrid Protection System: Combines a hydraulic adjustment system for precise discharge setting and a spring safety mechanism for overload protection. Foreign objects can pass through without damaging the machine.
Laminated Crushing: Adopts an optimized cavity design and high swing frequency, producing cubical-shaped end products with minimal flaky particles.
High Efficiency & Reliability: Features a robust structure, heavy-duty bearings, and grease lubrication to prevent water-oil contamination, ensuring stable operation and low maintenance costs.
Versatility: Available in multiple chamber types (coarse, medium, fine) to suit various crushing requirements.

Parameters

Model	Movable Cone Diameter (mm)	Cavity	Feed Opening(mm)		Outlet Size Can Be Adjusted(mm)	Capacity(t/h)	Motor Power(kW)	Weight(t)	Overall Dimension(mm)
			Closed Size(mm)	Opening Size(mm)
CS75B	900(3')	Fine	83	102	9-22	45-91	75	15	2821 × 1880 × 2164
		Coarse	159	175	13-38	59-163
CS110B	1200(4')	Fine	127	131	9-31	63-188	110	20	2821 × 1974 × 2651
		Medium	156	156	13-38	100-200
		Coarse	178	191	19-51	141-308
CS160B	1295(41/4')	Fine	109	137	13-31	109-181	160	27	2800 × 2342 × 2668
		Medium	188	210	16-38	132-253
		Coarse	216	241	19-51	172-349
CS220B	1395	Fine	155	173	19-45	120-200	220	31	3360 × 2650 × 3050
		Medium	188	198	22-50	150-300
		Coarse	230	245	25-65	200-400
CS240B	1650(51/2')	Fine	188	209	16-38	181-327	315	55	3911 × 2870 × 3771
		Medium	213	241	22-51	258-417
		Coarse	241	268	25-64	299-635
CS400B	2134(7')	Fine	253	278	19-38	281-726	110	110	4613 × 3251 × 4732
		Medium	303	334	25-51	608-998
		Coarse	334	369	31-64	789-1270

Advantages

1. Inherit the classic structure design with stable and reliable performance. The reason why the spring cone crusher has become a widely used cone crusher at home and abroad is its reliability in a variety of working conditions, and the compound cone crusher retains the classic structure; equipment reliability has been largely guaranteed

2. A variety of cavity types are available, and the application of a variety of working conditions has two types: standard type and short head type; each type is equipped with a variety of cavity types that can be applied to a variety of hardness materials in the crushing and fine crushing operation needs

3. Laminated crushing design, good discharge particle shape, the use of laminated crushing principle to break the material, high crushing efficiency, low wear of wearing parts; The finished product is a cube after crushing, and the fine grain content is high, which can well meet the use needs of some high-quality aggregates at this stage

4. Long service life, a wide range of applications The body and accessories with high-quality steel effectively reduce the material damage to the body and accessories and can break dozens

Application Fields

Primarily used in mining, metallurgy, construction, road building, and chemical industries. It efficiently processes medium-to-high hardness materials such as granite, basalt, diabase, iron ore, copper ore, and cobblestone. With a processing capacity ranging from 16 to 1,941 m³/h, it is ideal for aggregate production and mineral beneficiation lines.

This crusher stands out for its balanced performance, combining ease of operation, high productivity, and durable construction, making it a preferred choice for modern crushing operations.
