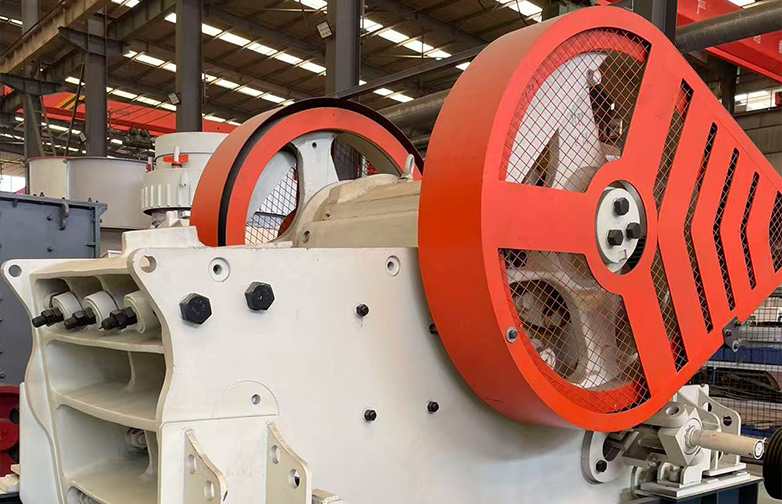

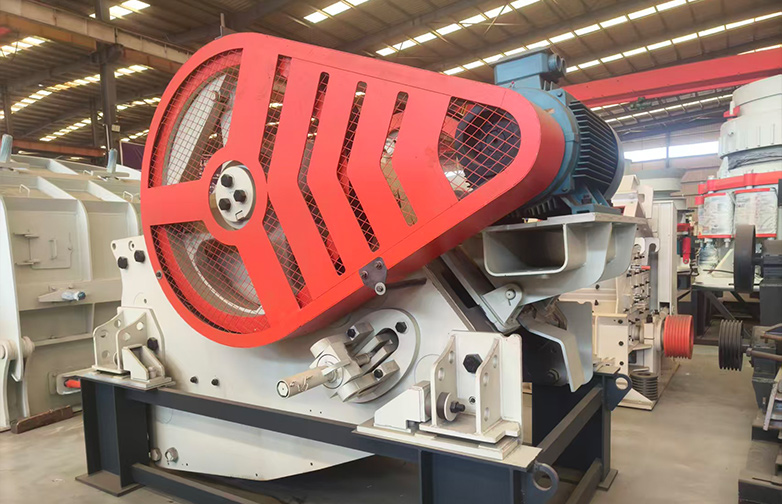

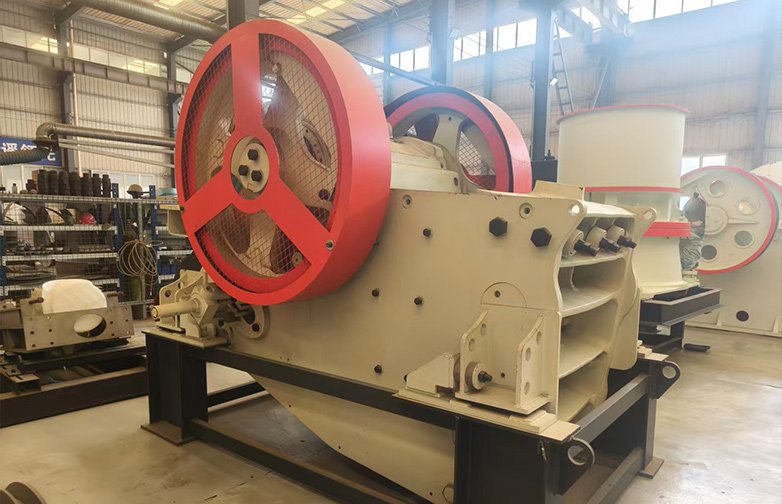

The European jaw crusher is a new generation of high-efficiency jaw crusher developed by drawing on advanced European crushing technology. It adopts a deep V-shaped crushing cavity, an integral cast steel frame, and a heavy-duty eccentric shaft structure. It is mainly used for coarse and medium crushing of various ores and large materials in industries such as mining, building materials, infrastructure, and sand and gravel aggregates. It is currently the mainstream primary crushing equipment in the crushing production line.
River pebbles, granite, basalt, iron ore, limestone,quartz, iron ore, gold ore, copper ore, etc.
Core industries: Mining, metallurgy, building materials, highways/railways, water conservancy, chemical engineering, power, refractory materials, ceramics, construction waste treatment.
30-400kw

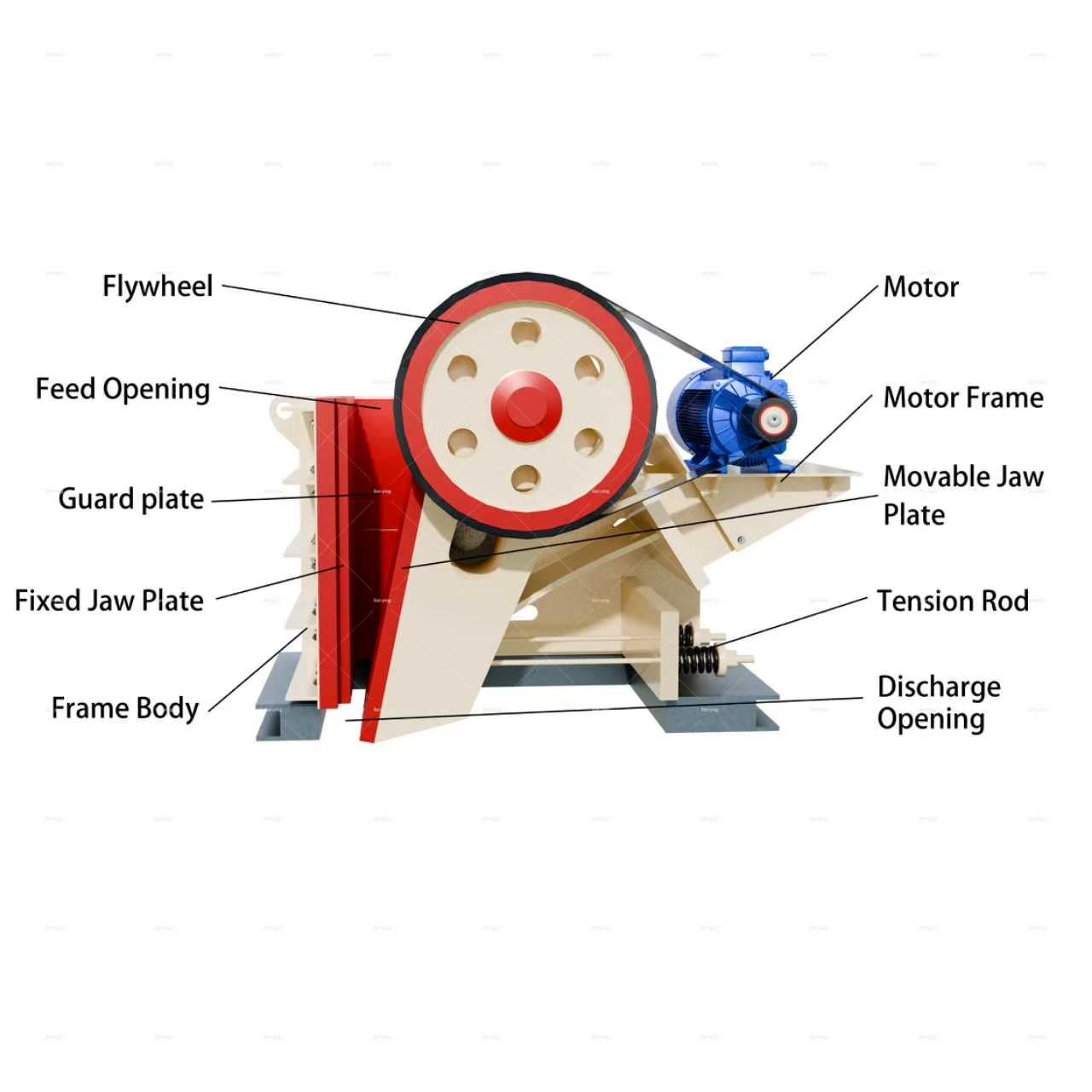

The motor drives the eccentric shaft to rotate through a pulley, causing the movable jaw plate to swing periodically back and forth. When approaching the fixed jaw plate, it squeezes, splits and bends the material for crushing. When leaving, the crushed material is automatically discharged from the discharge port under the action of gravity, continuously completing the crushing operation.
|
Model |
Size of Feed Opening (mm) |
Motor Power (kW) |
Speed (r/min) |
Fixed jaw plate length (mm) |
Max.Maintenance Weight (Kg) |
|
(Without Flywheel Moving Jaw Assembly) |
|||||
|
CX80 |
800×510 |
75 |
350 |
1100 |
2870 |
|
CX96 |
930×580 |
90 |
300 |
1100 |
3500 |
|
CX100 |
1000×760 |
90 |
260 |
1600 |
7060 |
|
CX106 |
1060×700 |
110 |
280 |
1450 |
4020 |
|
CX110 |
1100×850 |
132 |
230 |
1800 |
9000 |
|
CX125 |
1250×950 |
160 |
220 |
2000 |
12960 |
|
CX140 |
1400×1070 |
200 |
220 |
2100 |
15950 |
|
CX145 |
1400×1100 |
200 |
220 |
2300 |
18600 |
|
CX160 |
1600×1200 |
250 |
220 |
2500 |
21380 |
1. It adopts a deep cavity V-shaped structure, with no crushing dead zones, large feed capacity, high crushing ratio and high output.
2. Integral cast steel frame, heavy-duty eccentric shaft, impact-resistant, wear-resistant, stable and reliable operation.
3. The discharge port adopts wedge block or hydraulic adjustment, and the particle size adjustment is quick and accurate.
4. The wear-resistant parts such as the jaw plate are made of high-quality materials, wear out slowly, are easy to replace, and have low operation and maintenance costs.
5. High transmission efficiency, lower energy consumption compared with traditional models, and obvious energy-saving effect.
6. The sealing structure is reasonable, with less dust and low noise, meeting the requirements of environmental protection production.
7. Compact structure, large inspection space, and convenient and quick daily maintenance and repair.
>
