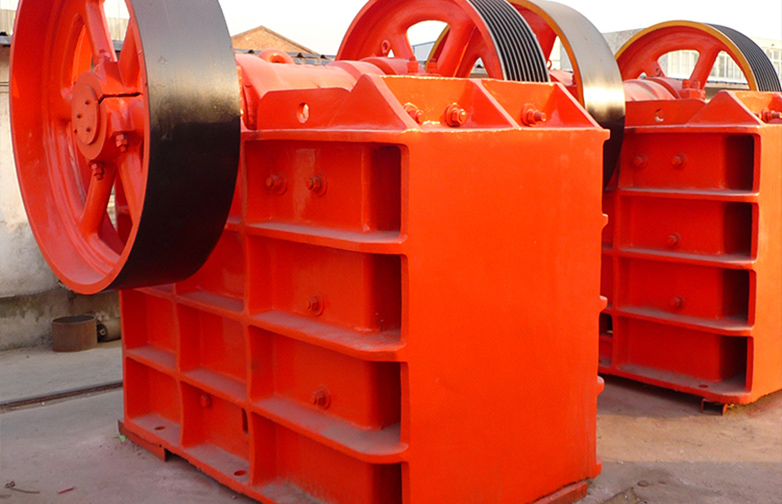

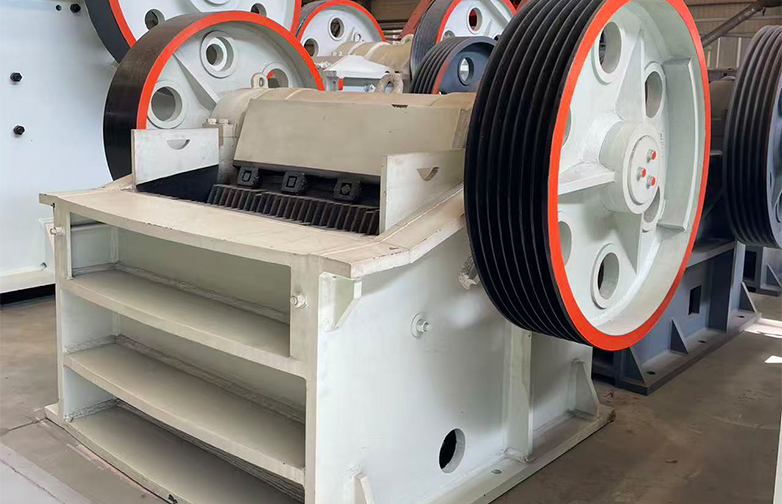

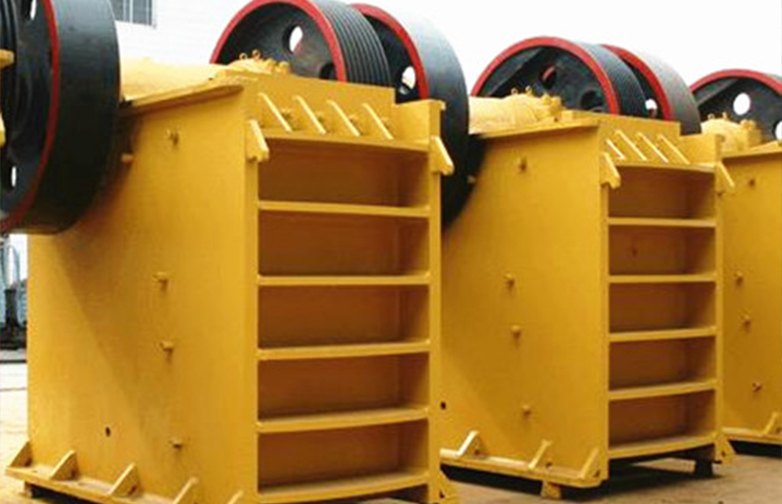

The jaw crusher, also known as the jaw breaker, is a widely used crushing equipment in fields. It is mainly used for coarse crushing of rocks, ores and other materials. It features a simple structure, stable operation, strong applicability, large output and convenient maintenance. It is a commonly used core equipment in various crushing production lines.
Limestone, granite, basalt, sandstone, quartz, river pebble and iron ore Primary crushing of metal/non-metallic ores (iron, copper, gold,etc.)

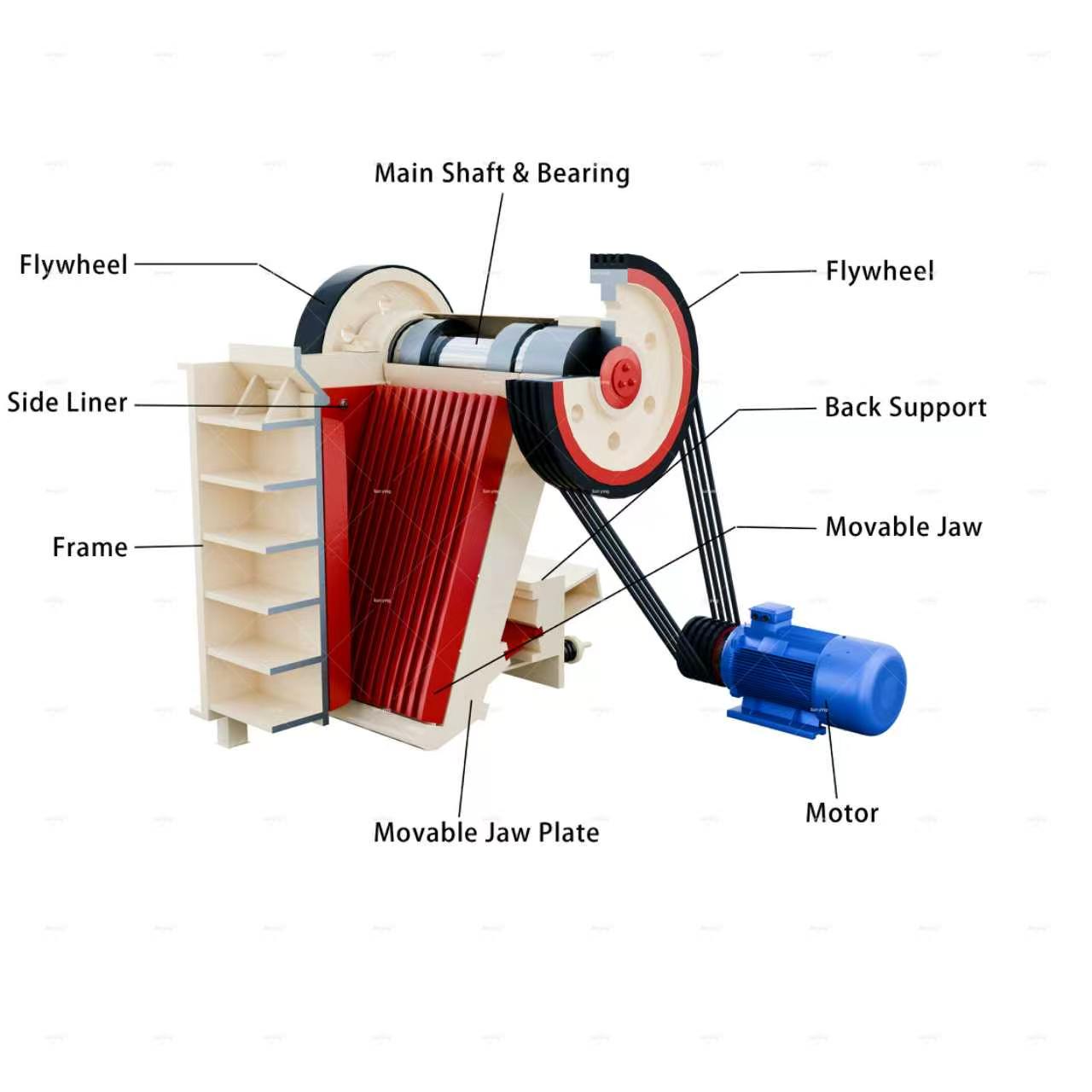

The motor drives the eccentric shaft to rotate, causing the movable jaw to perform periodic reciprocating motion, constantly approaching and leaving the fixed jaw plate. This squeezes, splits and breaks the material entering between the two jaw plates, thereby crushing large pieces of material. The crushed material is discharged from the lower discharge port relying on its own weight.
|
Model |
Size of Feed Opening(mm) |
Max.feed Size(mm) |
Discharge Opening Adjustment Range（mm） |
Processing Capacity（t/h） |
Power（kW） |
Overall Dimension LxWxH(mm) |
|
PE400×600 |
400×600 |
350 |
40-90 |
15-60 |
30 |
1650×1588×1050 |
|
PE500×750 |
500×750 |
425 |
50-100 |
40-110 |
55 |
1956×1918×1920 |
|
PE600×900 |
600×900 |
500 |
60-125 |
90-180 |
75 |
2250×2733×2280 |
|
PE750×1060 |
750×1060 |
630 |
60-150 |
110-380 |
110 |
2531×2455×2783 |
|
PE900×1060 |
900×1060 |
700 |
100-160 |
180-380 |
110 |
2900×2657×2950 |
|
PE900×1200 |
900×1200 |
750 |
110-165 |
220-450 |
110-132 |
3100×2760×3260 |
|
PE1000×1200 |
1000×1200 |
850 |
195-265 |
315-500 |
132-160 |
3480×2876×3330 |
|
PE1200×1500 |
1200×1500 |
1020 |
150-300 |
400-800 |
160-220 |
4200×3300×3500 |
|
PEX250×750 |
250×750 |
210 |
15-50 |
15-30 |
22-30 |
1400×1751×1515 |
|
PEX350×750 |
350×750 |
300 |
15-50 |
18-40 |
30 |
1485×1680×1648 |
|
PEX250×1000 |
250×1000 |
210 |
15-60 |
15-60 |
30 |
1550×1964×1380 |
|
PEX250×1200 |
250×1200 |
210 |
25-60 |
20-60 |
37-45 |
1530×1946×1380 |
|
PEX300×1300 |
300×1300 |
250 |
20-90 |
35-70 |
55-75 |
2000×2320×1730 |
|
PEX500×1500 |
500×1500 |
400 |
40-110 |
45-150 |
75 |
2850×2640×2100 |
1. Large feed opening, suitable for primary crushing of large rocks
2. Simple and robust structure with extremely low failure rate
3. Strong adaptability to high-hardness ores and materials
4. Not easy to clog, can handle wet, sticky and muddy materials
5. Low cost, economical investment and operation
6. Easy maintenance and quick replacement of wear parts
7. Small footprint, easy installation and mobility
8. Excellent overload protection and good over iron passing capability

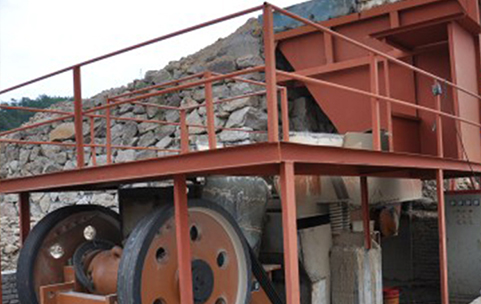

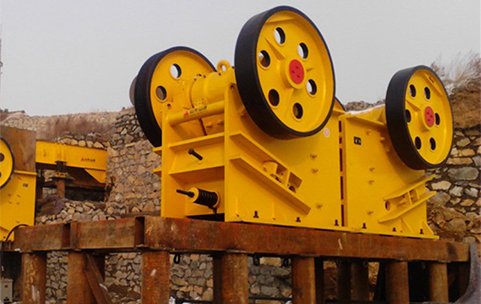

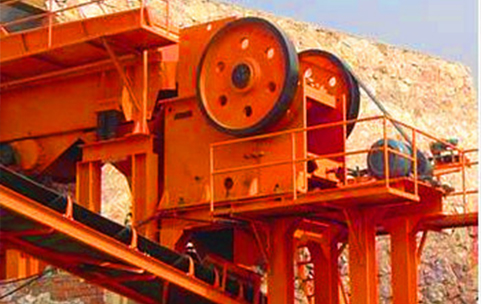

Building materials: Sand and gravel aggregates, cement raw materials, recycled concrete, asphalt materials. Metallurgy, chemical industry, power, resource utilization of construction waste, coal preparation. Infrastructure construction.
>
